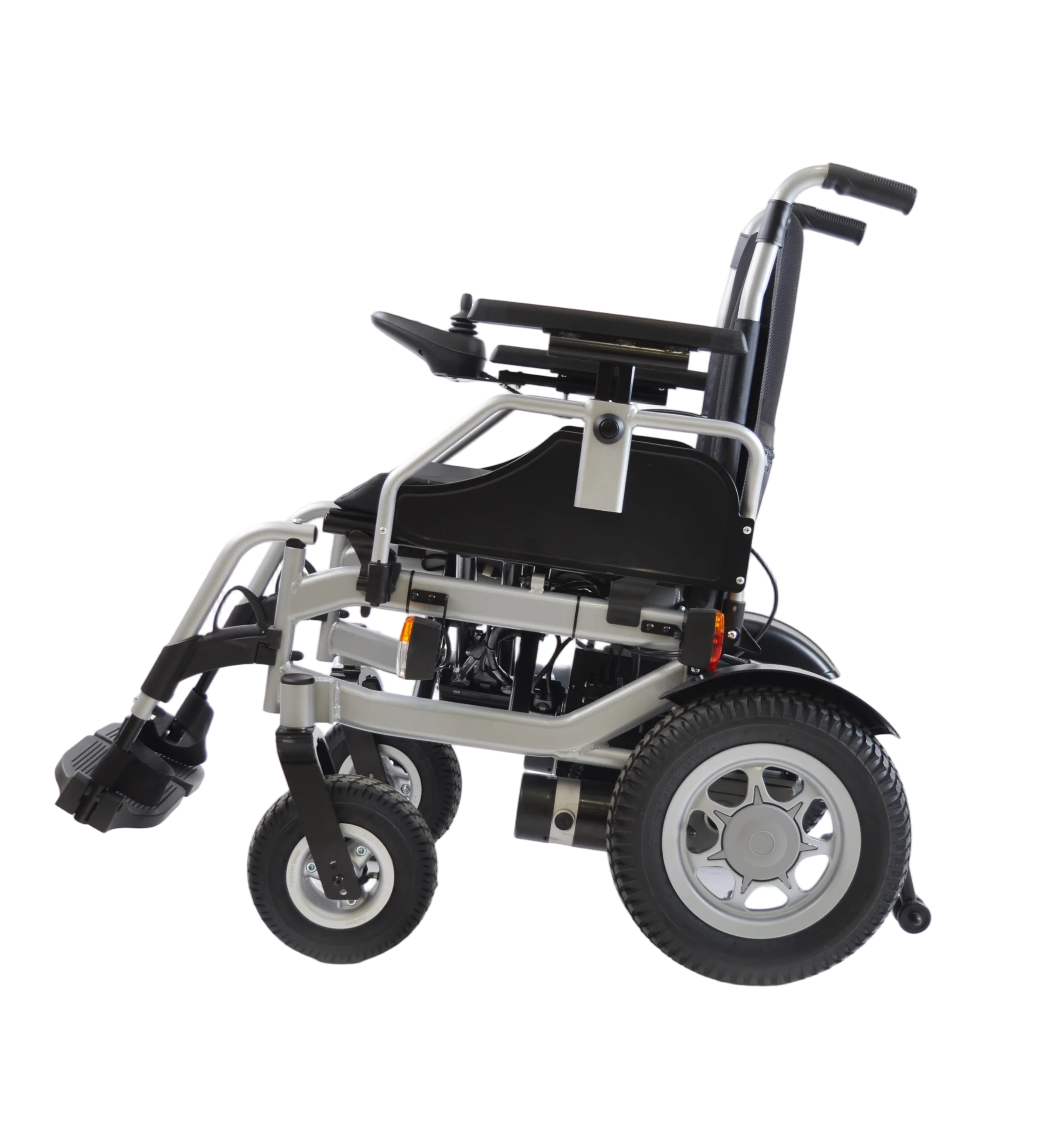

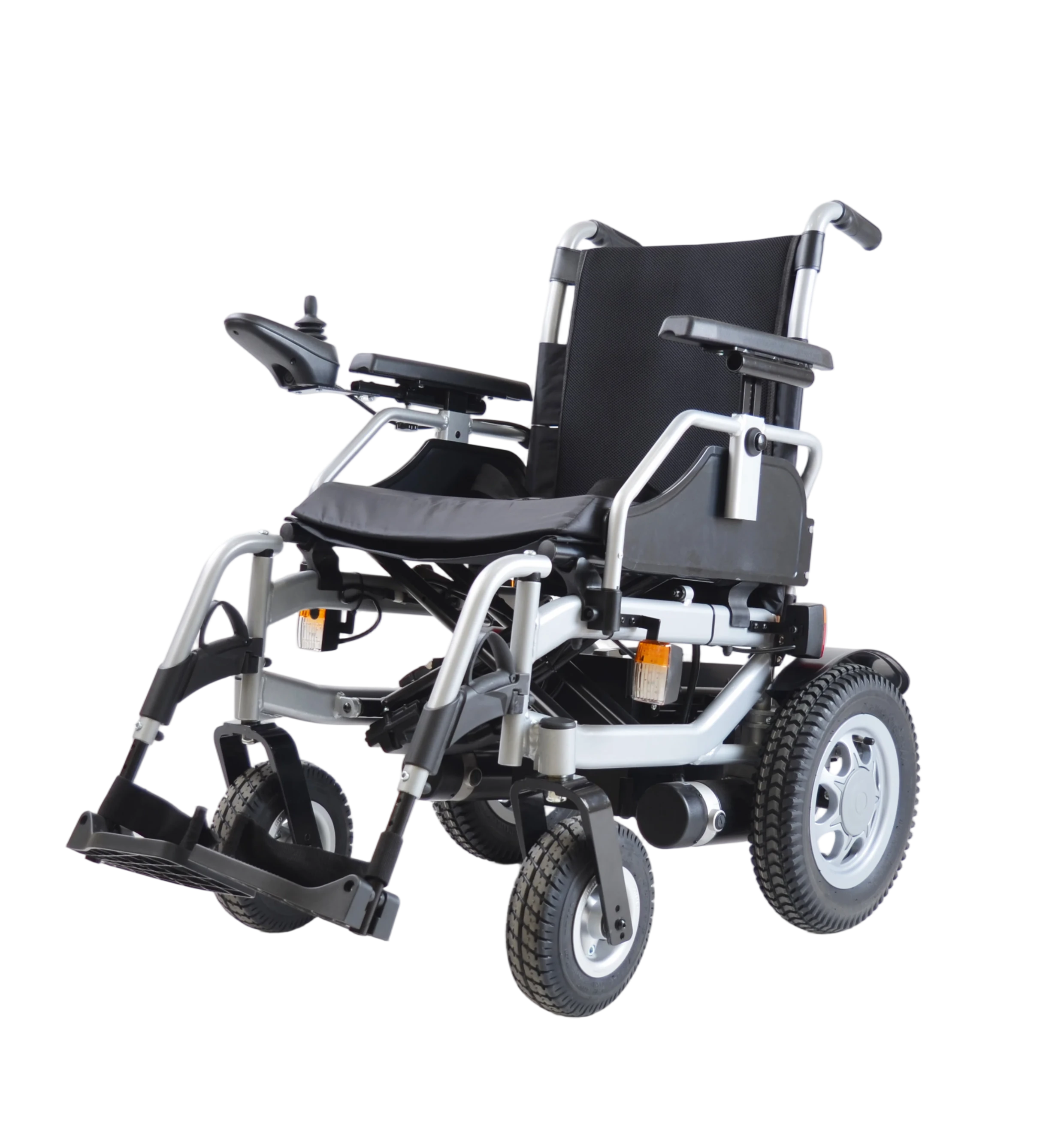

JUMPER（Y205）

color
Frame

Aluminum,powder coating
Front Wheel

9" PU tire,10" optional
Rear Wheel

14" pneumatic/solid,aluminum alloy
Armrest

Flip back height adjustable slope armrest,PU armpad
Footrest

Detachable footrest with heel support
Seat And Backrest

Tension nylon with sponge,thick cushion
Package

75pcs/20"GP,160pcs/40"HQ
Motor

340W*2,brush motor
Battery

Lead acid 2*12V 32Ah,20Ah/36Ah optional
Controller

PG/China
Travel Mileage

20 km
Max. Speed

9 km/h
Max. Capacity

135KG

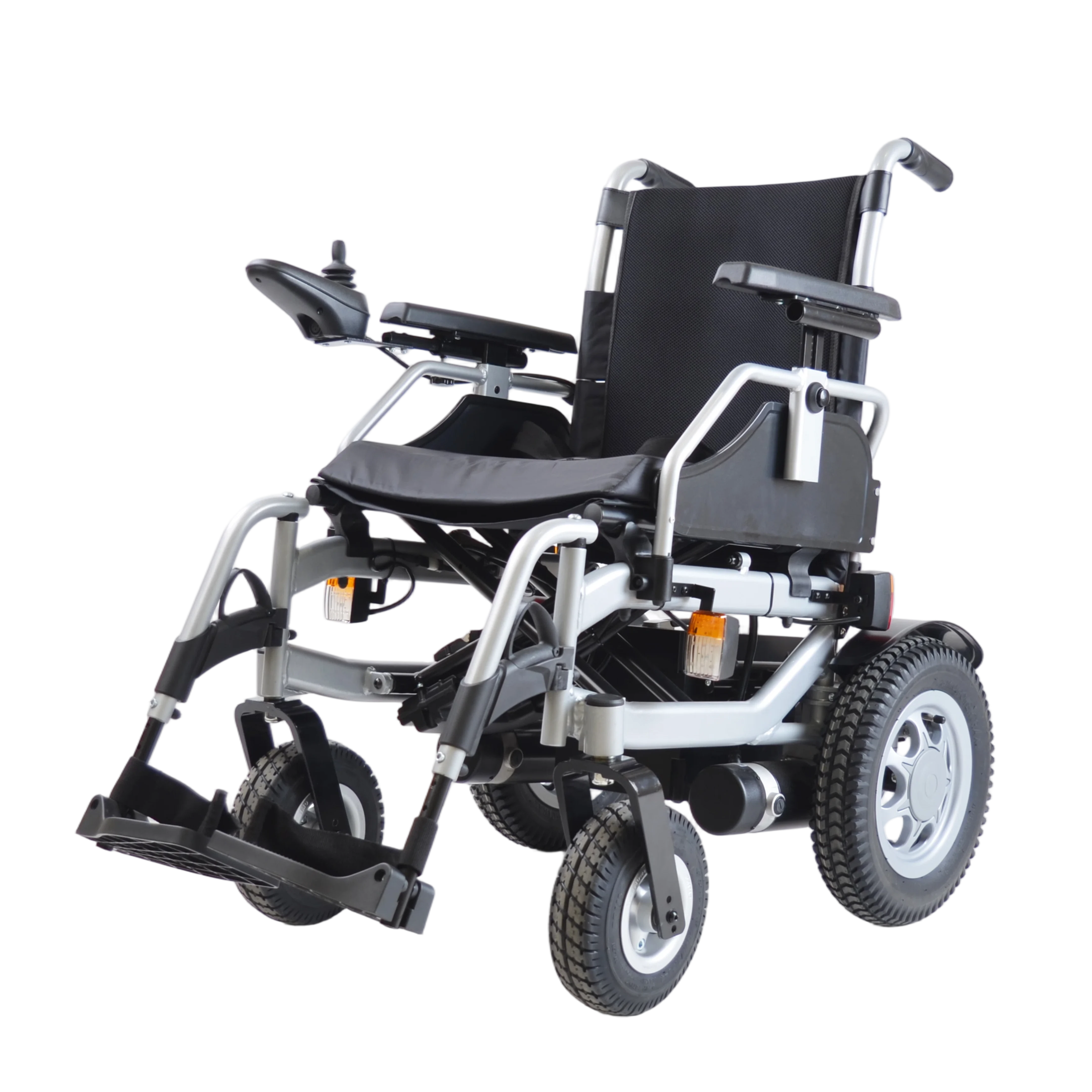

Product Features

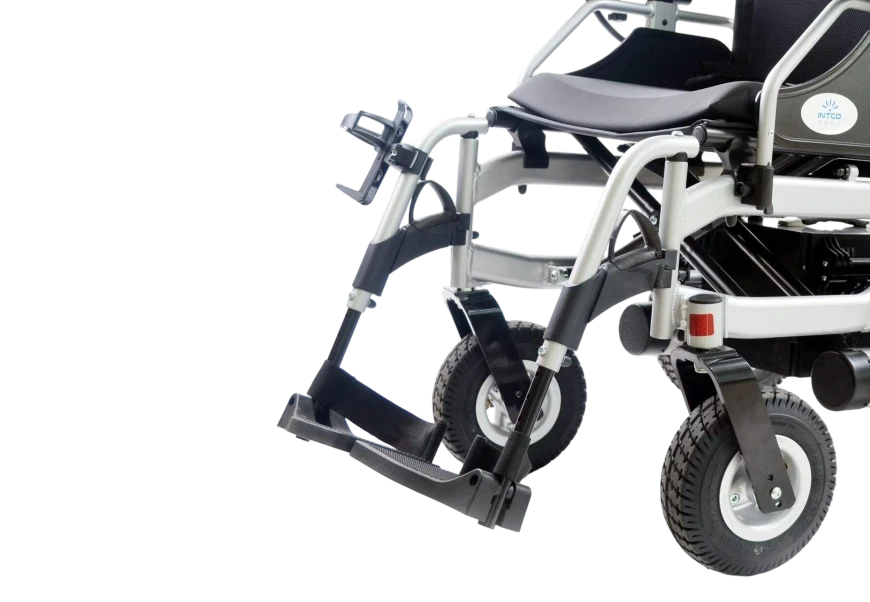

Phone & Cup Holder

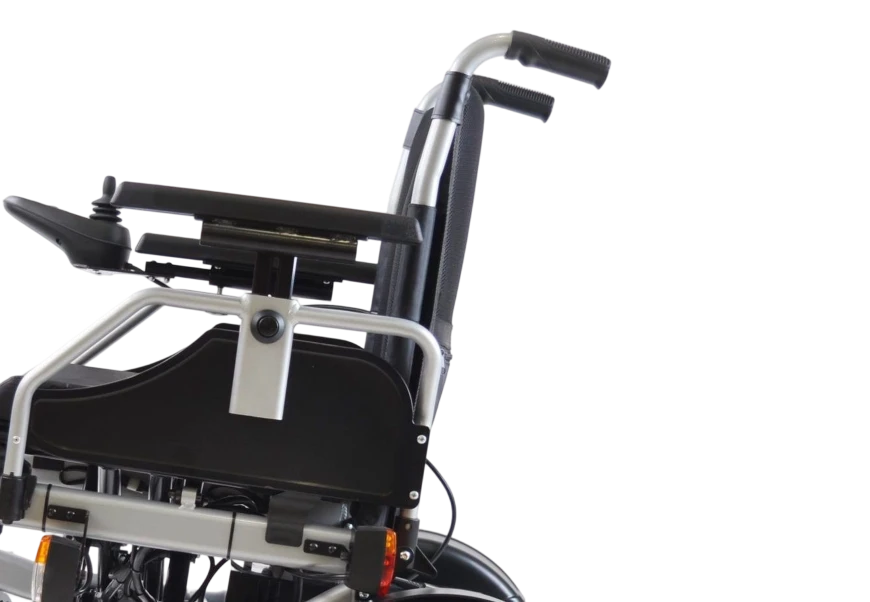

Electromagnetic Brake System

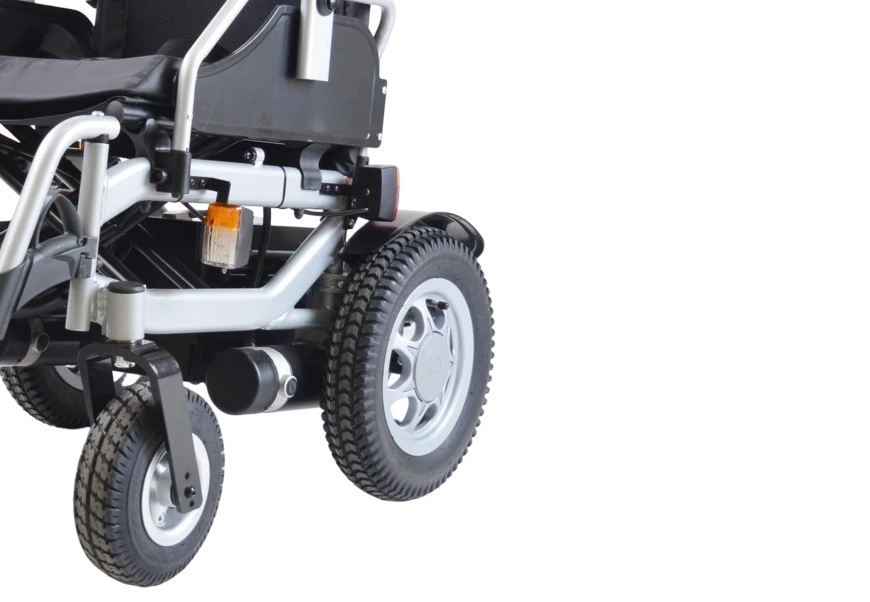

Adjustable Armrest & Safety Belt

Specification

Front
Size
Package

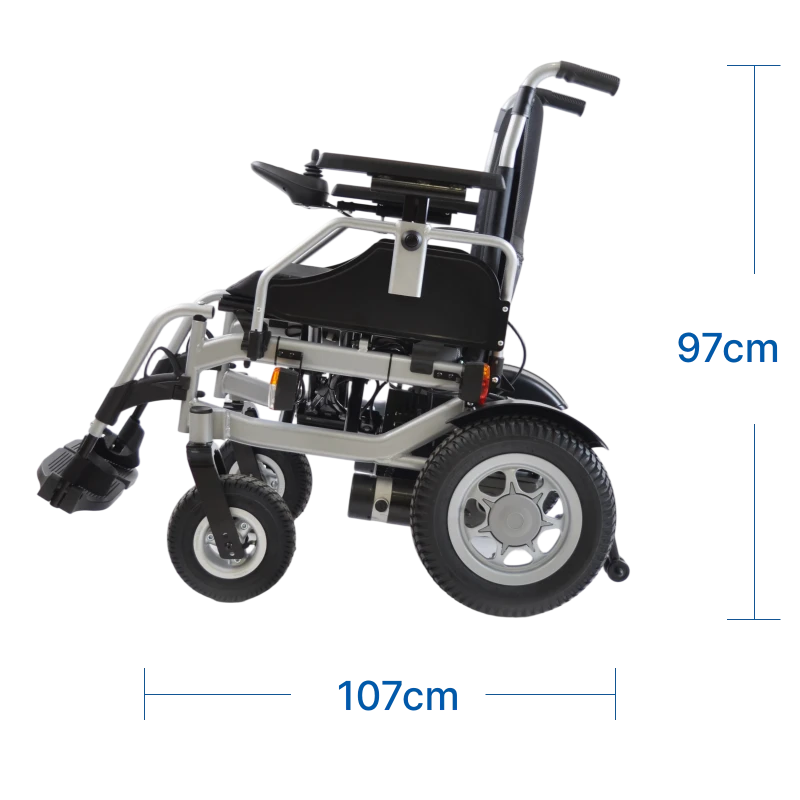

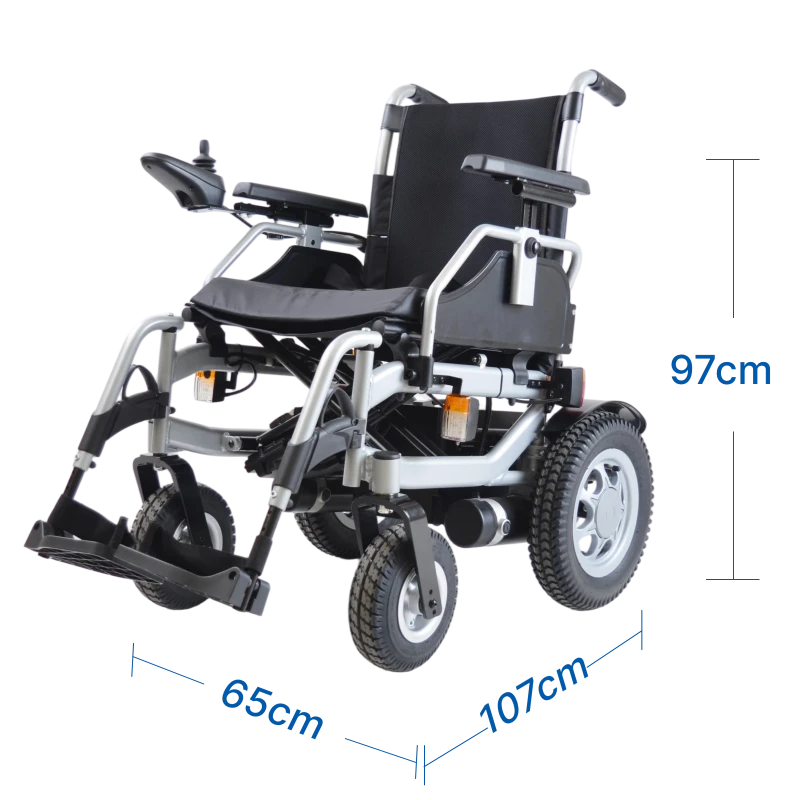

Overall Length(cm): 107	Overall Width(cm): 65	Overall Height(cm): 97
Overall Width Folded(cm): 36	Seat Width(cm): 43-48	Seat Depth(cm): 44
Back Height(cm): 44	Floor to Seat Height(cm): 53	Weight Capacity(kg): 135
Front Caster Spec.: 9"	Rear Wheel Spec.: 14"	G./N. Weight(kg): 81.0/62.0

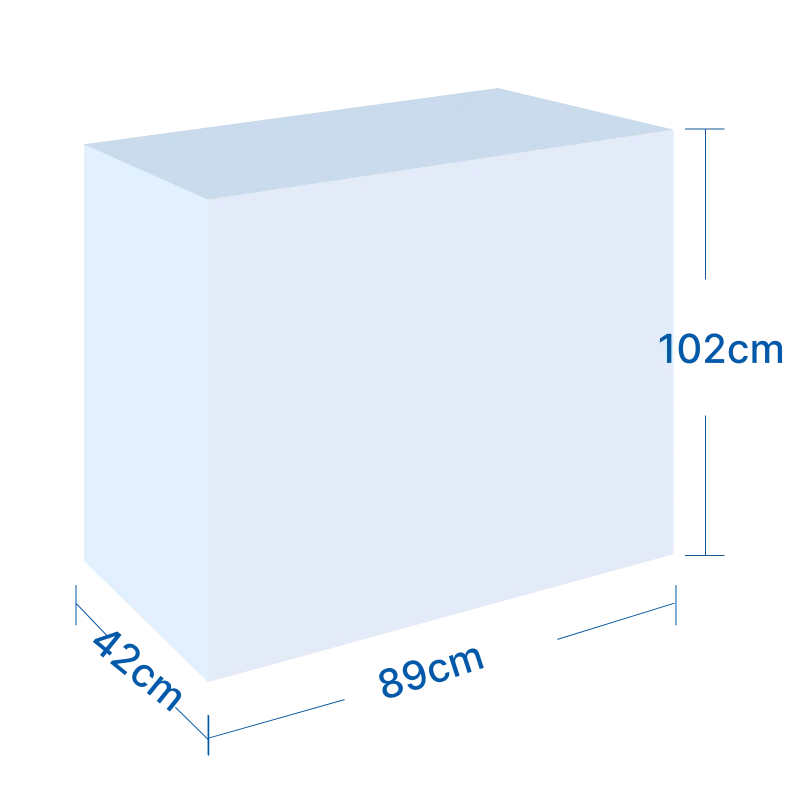

Carton Size(cm): *8942104*

FAQ

What are the motor and battery specifications of the JUMPER Y205 power wheelchair?: The JUMPER Y205 is equipped with dual 340W brush motors and a 24V lead-acid battery system (2×12V 32Ah, with 20Ah/36Ah options). This configuration provides reliable power for daily indoor and outdoor mobility needs.

What is the maximum speed and travel range of the JUMPER Y205 wheelchair?: The JUMPER Y205 power wheelchair has a maximum speed of 9 km/h and a travel range of up to 20 km. It is designed to support comfortable daily mobility for users in different environments.

What comfort and adjustment features does the JUMPER Y205 include: The JUMPER Y205 features flip-back height-adjustable slope armrests, a detachable footrest with heel support, and a thick cushioned seat with tension nylon backrest. These designs help improve comfort and adaptability for different users.
